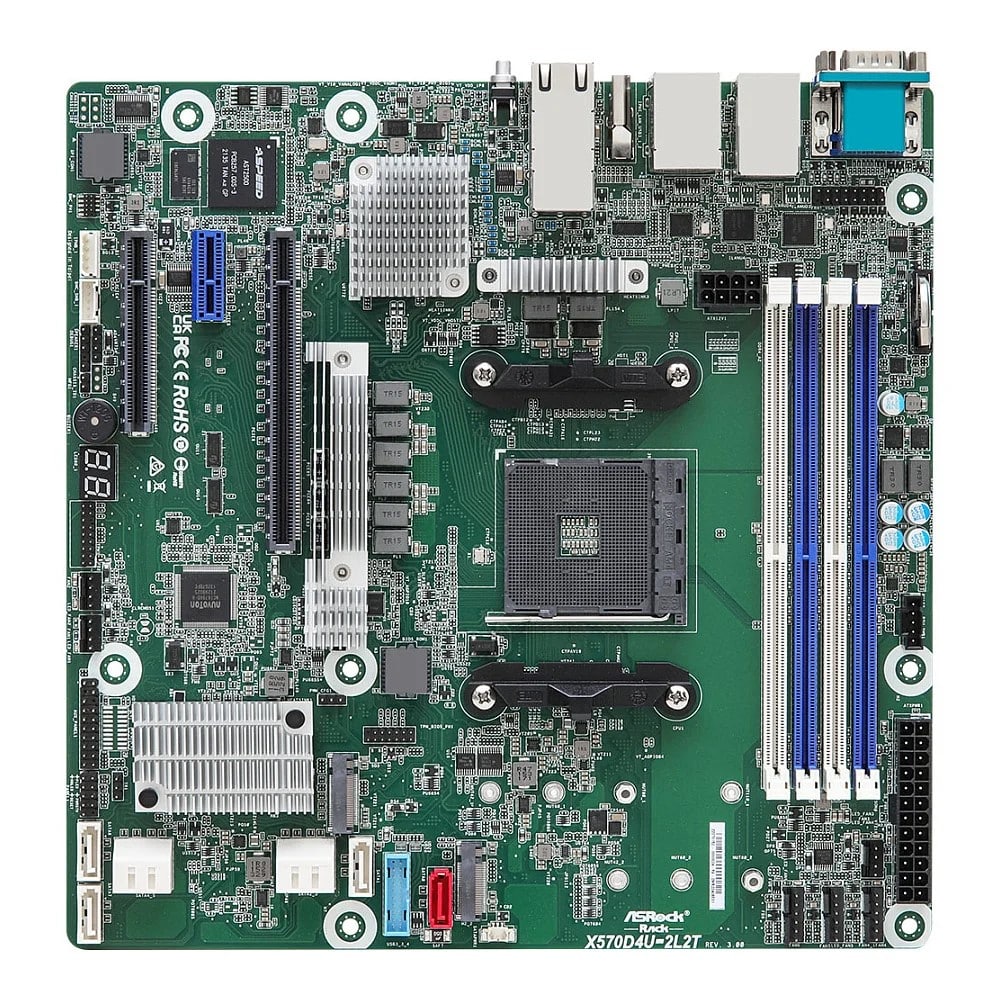

X570D4U-2L2T RACK MOTHERBOARD ATX AMD AM4 LAN BROADCOM ASROCK

X570D4U-2L2T RACK MOTHERBOARD ATX AMD AM4 LAN BROADCOM ASROCK
Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3, AMD Ryzen 5
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory voltage: 1.2 V
ECC compatibility: ECC and Non-ECC
Supported memory clock speeds: 2666, 3200 MHz
Maximum supported memory clock speed: 3200 MHz
Maximum internal memory: 32 GB
Supported storage drive interfaces: SATA
Graphics card family: ASPEED
Graphics card: AST2500
USB 3.2 Gen 1 internal connectors: 2
ATX power connector (24-pin): Yes
Power fan connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 2 Type-A ports: 2
Ethernet LAN ports (RJ-45): 4
IPMI LAN port (RJ-45): Yes
VGA (D-Sub) ports: 1
HDMI ports: 1
Serial ports: 1
Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet
Wi-Fi: No
Motherboard chipset: AMD X570
Component for: PC
Motherboard form factor: Micro ATX
Motherboard chipset family: AMD
BIOS type: UEFI AMI
BIOS memory size: 32 Mbit
ACPI version: 6.2
System Management BIOS (SMBIOS) version: 3.3.0
